Compare toelna eXpressive 970 Seven Needle Embroidery Machine.

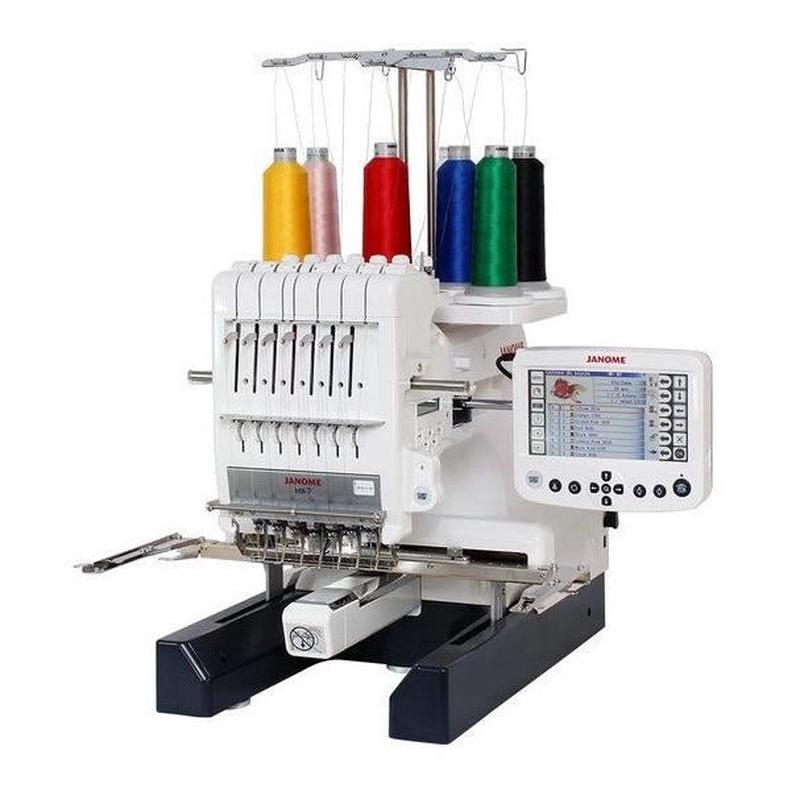

A leader in professional quality home embroidery machines, Janome offers the amazing MB-7, a 7-needle model used for creating amazing embroidery projects. Perfect for embroiderers with at least some experience with these types of machines, the MB-7 is perfect for users looking for a machine that will allow them to really expand their creativity.
The Janome MB-7 is a machine suitable for personal use or even for a small embroidery business with its quick stitching and easy programming. This model is upgraded from the MB-4, another in Janomes line of personal and professional embroidery machines. It is a single head machine that can work 7 threads simultaneously to produce amazing threaded artworks.
The MB-7 has a large, 7 remote computer screen (RCS) that can be used on or off the machine as desired. It accepts JEF, JEF+, and DST embroidery files when uploaded through its USB port. The MB-7 includes 50 built-in designs. 10 monogramming fonts, and can do 2- and 3-letter monogramming. It allows extensive on-screen design editing including combine, group, re-edit, rotate, and more. It embroiders at 800 SPM and displays details such as thread colors, stitches per color, total stitching time, and more.
The MB-7 has a large 9.4 x 7.9 embroidery area, adjustable hoop positioning, and comes with 3 different sized embroidery hoops. Other great features designed to make embroidering easier include 6 bright built-in work lights, a stitch counter, a stitch-out timer, embroidery area tracing, flexible stitch travel, jump thread trimming, thread break auto return, thread and presser foot sensors, and more.
Only slightly larger than its predecessor the MB-4, the MB-7 weighs approximately 50 lbs. It is a quiet machine that produces crisp, quality stitches and results like any industrial embroidery machine. It is a great investment for anyone who spends many hours working on machine embroidery or who runs a small embroidery business.
Main Features
Large LCD Display & Navigation
Access all of the Janome MB-7 features and view your designs easily on the large 5.7 Remote Computer Screen (RCS) display with LCD touch screen. This display features a large viewing area with USB ports on the side. This can be attached to the MB-7 or can be used free-standing.
Embroidery Features
The MB-7 features 50 built-in designs, 10 fonts for monogramming, built-in 2 and 3 letter monogramming, and accommodates jumbo bobbin that is 1.4 times larger than a regular bobbin. Editing functions include enlarge/reduce, rotate, turnover, drag and drop, re-edit, zoom, arc, combine, and more.
Conervenience Features
With its number thread guide system, threading your machine has never been easier! The Janome MB-7 also features an automatic stitch jump trimming, and a powerful on-screen editing featuring that makes completing projects faster!
Basic Features
- 7-needle embroidery machine
- 5.7″ Remote Computer Screen (RCS)
- Jumbo bobbin
- 6 white LED lamps
- 50 built-in designs
- 10 fonts for monogramming
- 2 and 3 letter monogramming function
- Maximum embroidery size: 9.4″ x 7.9″ / 238mm x 200mm
- Design transfer via USB
- Embroidery speed up to 800 SPM
- Embroidery format capability: .jef+, .jef, .dst
- Programmable jump thread trimming
- Flexible stitch traveling
- Auto return post thread break
- Adjustable hoop positioning
- Upper thread and presser foot sensors
- Stitch-out time indicator
- Stitch counter
- Independent bobbin winder
- Embroidery area tracing
- Compatible with Tajima hoops
Accessories
- Needles
- Scissors
- Bobbins
- Lint brush
- Seam ripper
- Needle threader
- Spool caps
- Spool nets
- Screwdriver
- Screwdriver (small)
- Screwdriver (large)
- Oiler
- Offset screwdriver
- Tweezers
- Spool pin
- Spool rest
- Accessory box
- M1 Hoop 9.46 x 7.88
- M2 Hoop 5 x 4.3
- M3 Hoop 1.9 x 1.9
- Hoop supporter
- Felt ring (large)
- Felt ring (small)
- Spool rest
- Thread guide bar
- Thread guide pole
- Setscrew (A)
- Setscrew (B)
- Setscrew (C)
- Power cord
- USB cable
- Instructional CD-ROM
- Instruction manual
- Warranty card
